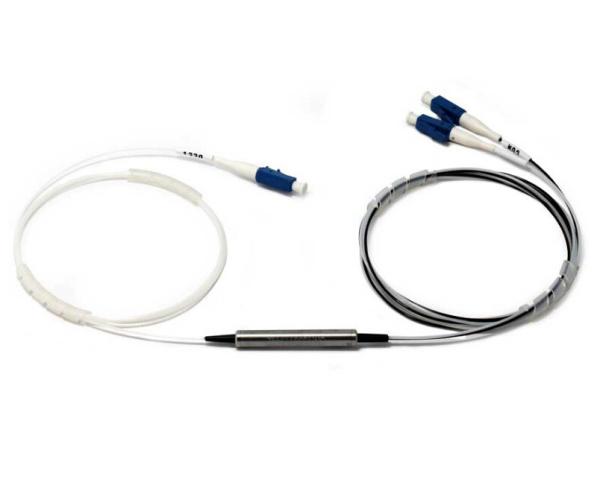

Name: 980nm 1550nm WDM Tap Coupler Isolator Hybrid Combination For Amplifier
Brand: UNIFIBER-OEM
Price: 1 USD

Brand Name : UNIFIBER-OEM

Model Number : 980/1550nm WDM-Tap Coupler-Isolator Hybrid Combination

Certification : ROHS

Place of Origin : CHINA

MOQ : 10pcs

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 1000pcs/day

Delivery Time : 3~5 business days

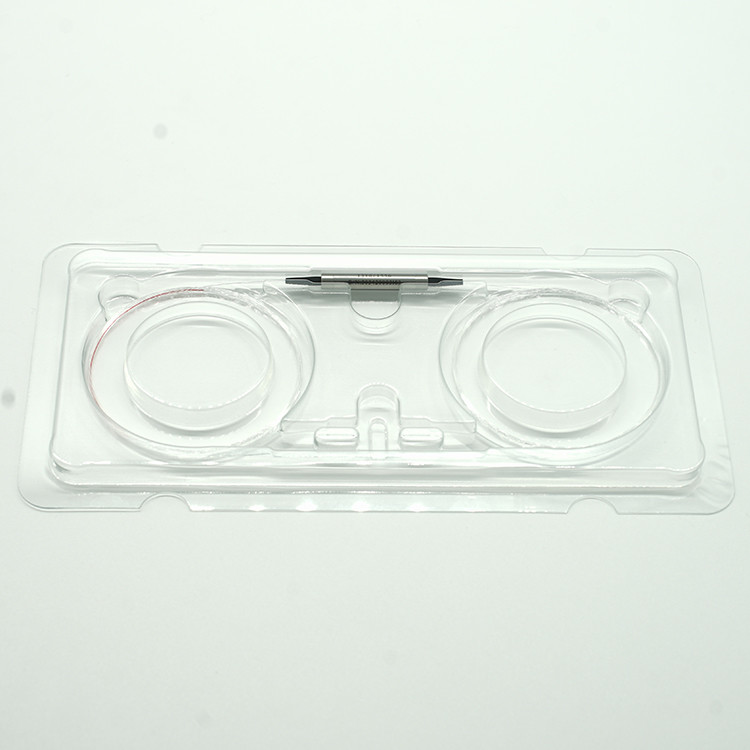

Packaging Details : Blister Case

Product : 980/1550nm WDM-Tap Coupler-Isolator Hybrid Combination

Stage : Single/Dual Stage

Tap Ratio : 1% 2% 5%

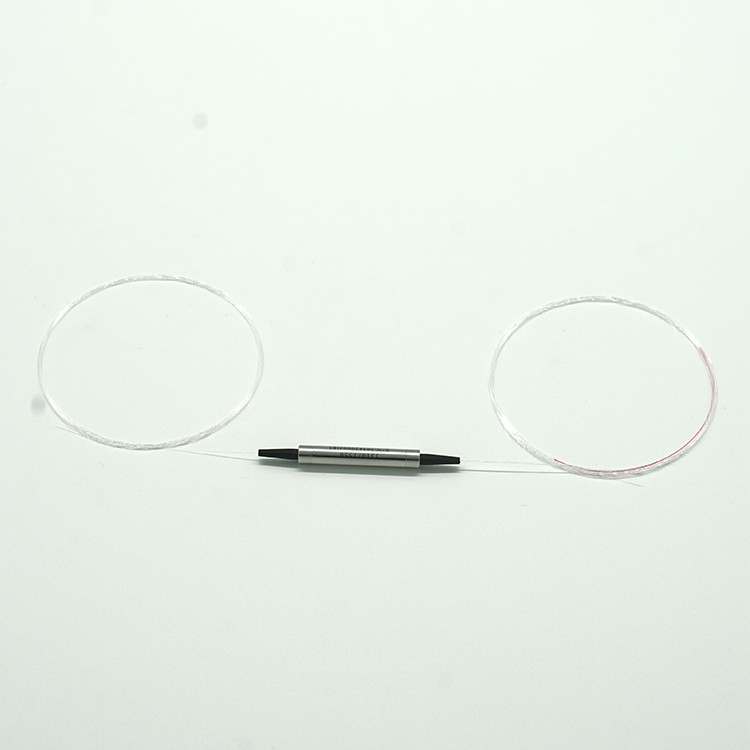

Pigtail Stype : 250um bare fiber or 900um loose tube

Connector : LC/UPC

Application : Fiber optic amplifier

Contact Now

Features	Applications
Wide operating wavelength range	Fiber optic amplifier
Low insertion loss	CATV fiber optic link
High channel isolation	WDM system
Ultra low PDL & PMD	Fiber optic instrument
High stability and reliability	Transmitter and fiber laser
Epoxy free on optical path	Laboratory R&D

Parameter		Single Stage	Dual Stage
Signal Operation Wavelength Range (nm)	C band	1530 ~ 1565
Pump Channel Wavelength Range (nm)		960 ~ 990
Isolation (dB) (Over signal wavelength range @23℃, all SOP)		≥30	≥42
Wavelength Isolation (dB) (4 to 2 @λ signal)		≥15
Wavelength Isolation (dB) (1 to 2 or 2 to 1 @λ pump)		≥30
Insertion Loss ( over wavelength range and 0 to +70℃, all SOP) (dB)	Pump Channel	≤0.6
	Signal Channel	≤1.3	≤1.4
	Tap Ratio 1%	19.0~21.0
	Tap Ratio 2%	16.2~18.0
	Tap Ratio 5%	12.2~14.0
Temperature Dependent Loss (dB)		≤0.25	≤0.3
Wavelength Dependent Loss (dB)		≤0.5
Return Loss (dB)		≥50
Directivity (dB)		≥50
PDL (dB)		≤0.15	≤0.2
PMD (ps)(Low PMD Option)		≤0.05	≤0.05
Power Handling (mW)		300
Operating Temperature (℃)		-10 ~ +75
Storage Temperature(℃)		-40 ~ +85
Package Dimension (mm)		Φ5.5 x L38
Fiber Type		Corning HI 1060 fiber at common / pump port
		Corning HI 1060 fiber or SMF-28e fiber at common port
		Corning SMF-28e fiber at signal port

1.Above specifications are for devices without connector.

2.Specifications may change without notice.
