CWDM LGX BOX 1x2ch OADM Add Drop Multiplexer

Name: CWDM LGX BOX 1x2ch OADM Add Drop Multiplexer
Brand: UNIFIBER-OEM
Price: 1 USD

Quality CWDM LGX BOX 1x2ch OADM Add Drop Multiplexer wholesale

Brand Name : UNIFIBER-OEM

Model Number : CWDM OADM

Certification : ROHS

Place of Origin : CHINA

MOQ : 10pcs

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 500pcs/day

Delivery Time : 5~7 Business days

Packaging Details : Carton Box

Operating Wavelength : 1270nm-1610nm

Logo : Can be customized

Package : LGX box

Connector : LC/UPC

Fiber type : G657A1 0.9mm pigtails

Application : PON network/CATV

Contact Now

1x2ch OADM Add/Drop Multiplexer CWDM LGX BOX Mux/Demux Module LC/UPC

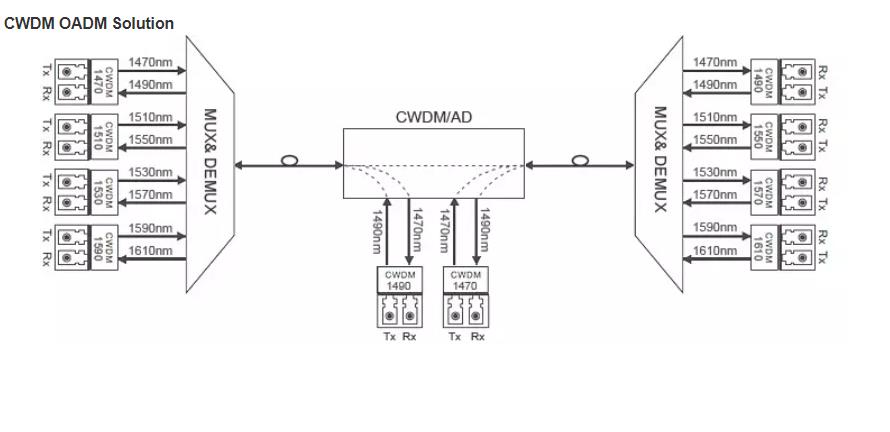

CWDM/OADM modules are Course Wave Division Multiplexing (CWDM) Optical Add/Drop Multiplexers (OADM). The CWDM/AD modules add (multiplex) and drop (demultiplex) chosed channels, or wavelengths, on both directions (east and west) or one direction (east or west) of a CWDM common fiber link. The technology enables intelligent planning and flexible provisioning of optical services while simplifying the deployment and maintenance of optical networks. Access points can be added to linear, bus, and ring networks, where the east and west ring design provides redundant protected architecture.

Features
high channel isolation
High stability and reliability

Low insertion loss
Wide band
Epoxy-free optical path

Applications
CWDM channel Add/Drop
Metro/Access networks
CATV system

Specifications

Parameter		Add	Drop
Operation Wavelength (nm)		1471, 1491 or 1470, 1490 etc.
Center wavelength accuracy (nm)		± 0.5
Channel Spacing (nm)		20
Passband (@-0.5dB bandwidth)(nm)		>13
Insertion Loss (dB)	Add/Drop Ch.	< 0.9
	Express Ch.	< 1.2
Add/Drop Pass band Flatness (dB)		< 0.3
Add/Drop channel Isolation(dB)	Adjacent Channel	N/A>30
	Non-adjacent Channel	N/A>40
Express channel Isolation (dB ) express		>25
Insertion Loss Temperature (dB/°C )		<0.003
Wavelength Temperature Shifting (nm/ °C )		<0.002
PDL (dB)		<0.10
PMD (ps)		<0.1
Directivity (dB)		>50
Return Loss (dB)		>45
Rated power (mW)		500
Operation Temperature (°C)		0 ~ +70
Storage Temperature (°C)		-40 ~ +85
Dimension (mm)		L100×W80×H10

Ordering Information

OADM
Channel Spacing	C=CWDM Grid
Channels Number	02=2 Channel
1st channel (1st )	471=1471nm 491=1491nm
Fiber diameter	1=bare fiber 2=900um loose tube
Fiber Length	1=1 Meter 2=2 Meter
Connector	0=None 1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=ST 6=LC
